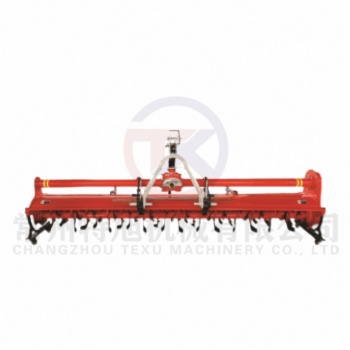

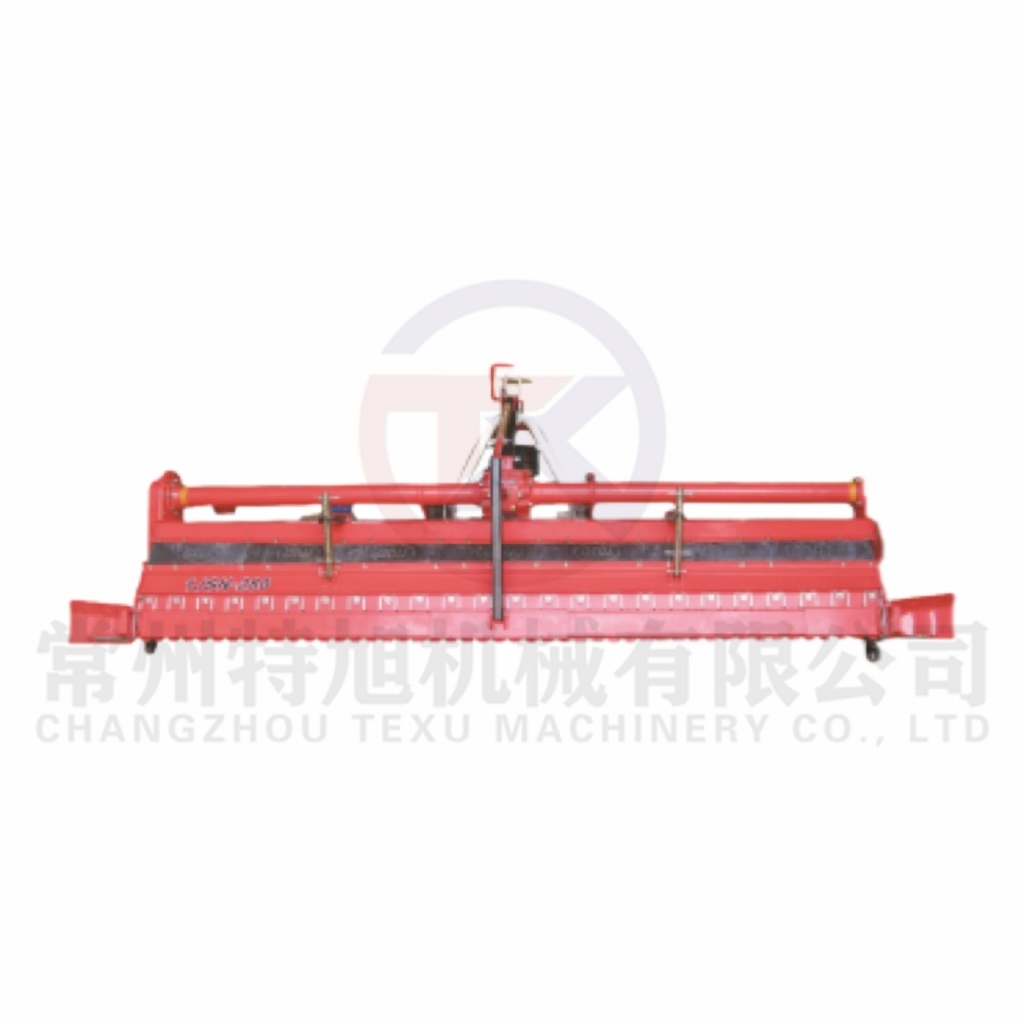

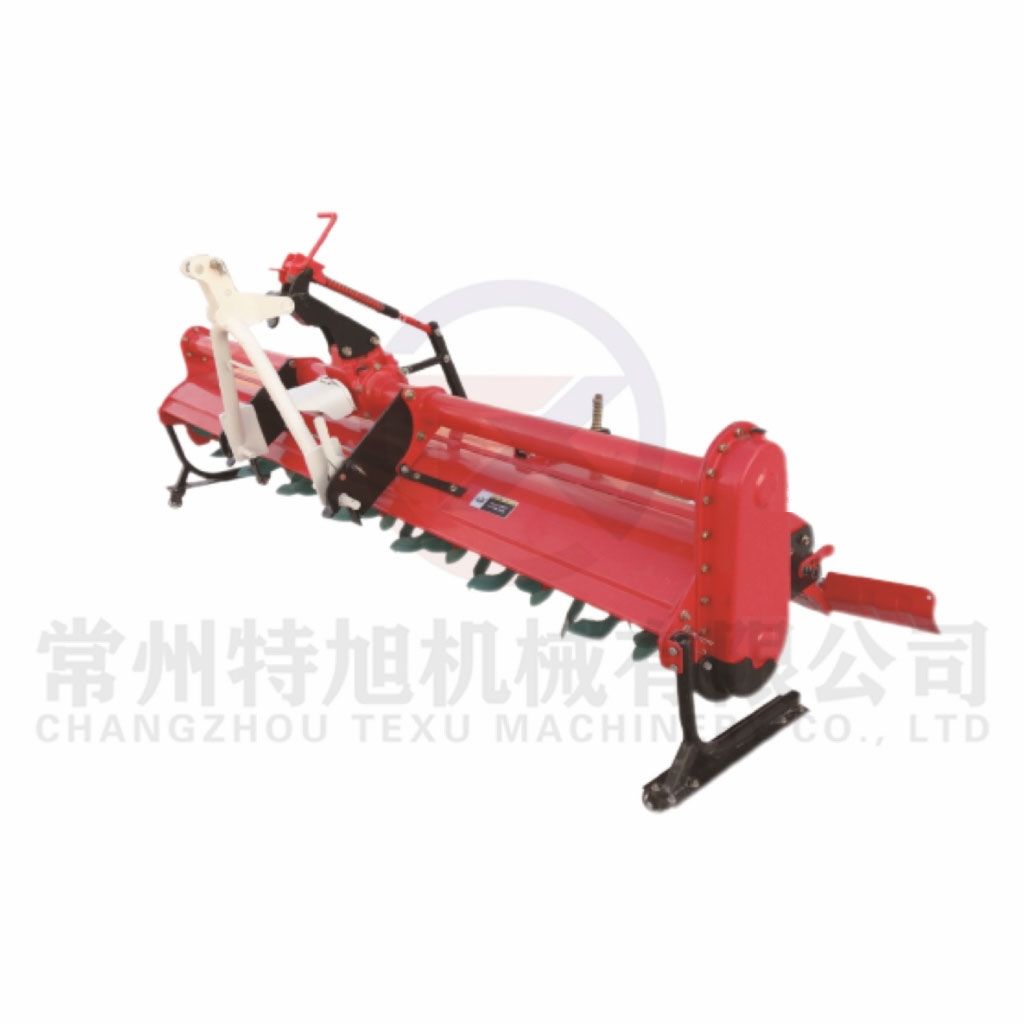

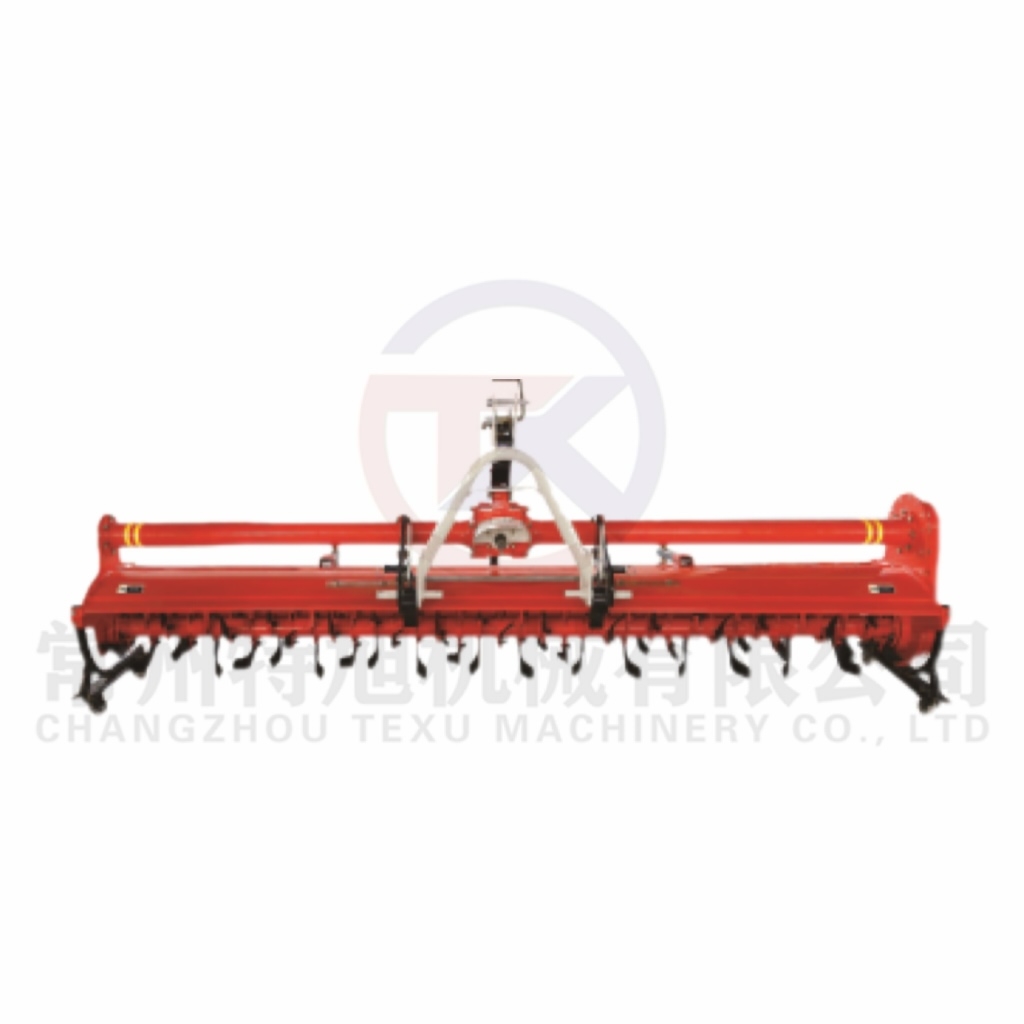

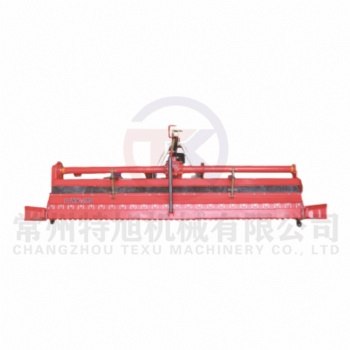

1JMSL-X Paddy field flat slurry mixer (chain type)

The paddy field flat slurry mixer can complete processes such as rotary tillage, slurry mixing, leveling, and covering in one go. It is easy to operate, low in price, and has low technical requirements. It saves 35 yuan per mu compared to traditional paddy field rotary tillage and cultivation, while also saving time, fuel, and labor. It reduces the number of operational steps and aligns with the principles of agricultural machinery development: 'adapt to local conditions, be economically effective, ensure safety, and protect the environment.'
EMAIL INQUIRY

Technical specifications：

Model	1JMSL-220	1JMSL-250	1JMSL-260	1JMSL-280	1JMSL -300
Transmission type	Side chain drive
External dimensions	*102023951010*	*102025951010*	*102027951010*	*102029951010*	*102031951010*
Weight kg	308	326	344	362	382
Matched powder	25-33	36.8-51.5	51.5-58.8	40.4-51.5	44.1-68.9
Working width cm	220	240	260	280	300
Tilling depth mm	10-16
Connection method	Three-point suspension connection
Input shaft speed	540，720
Blade roller speed	308，411
Blade installation method	Bracket type
Blade type and quantity	T35，56pieces	T35，62pieces	T35，68pieces	T35，74pieces	T35，78pieces
Maximum turning radius	180
Work speed km/h	3-6
