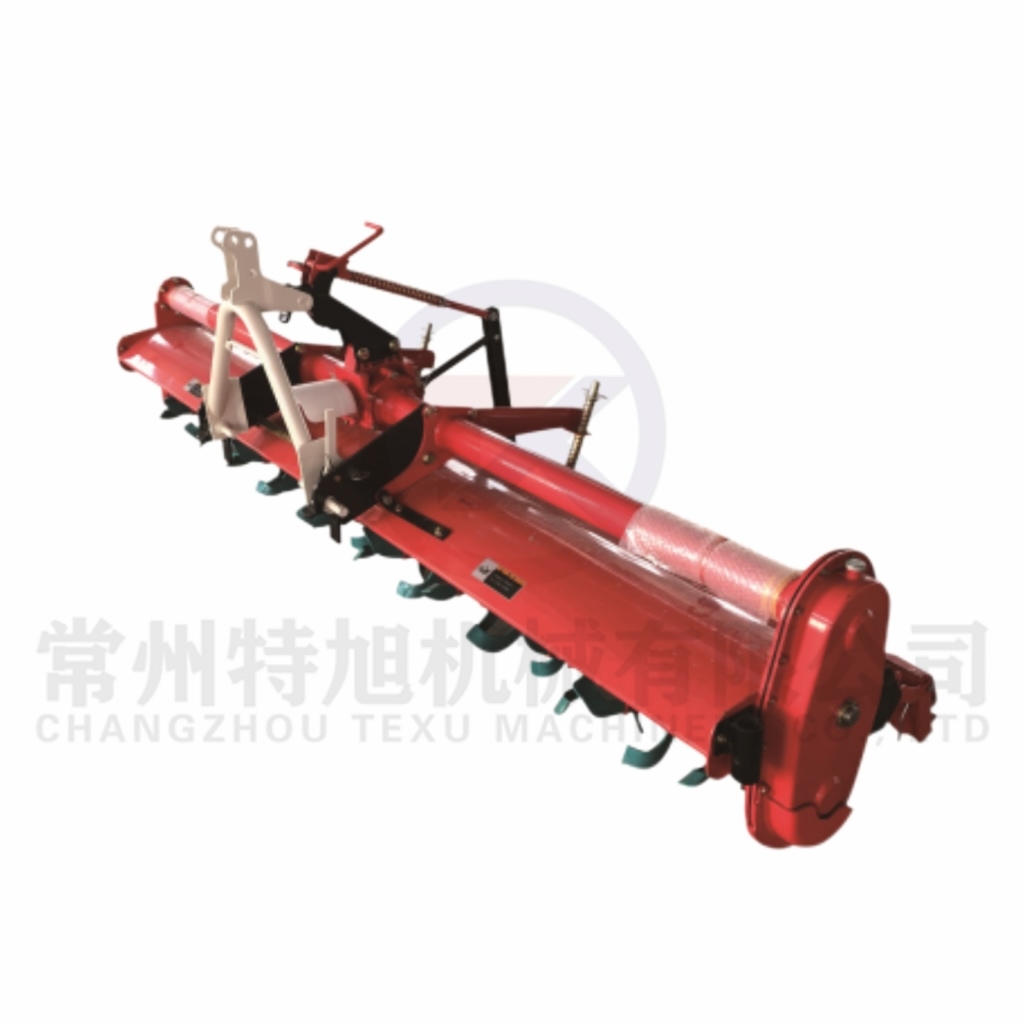

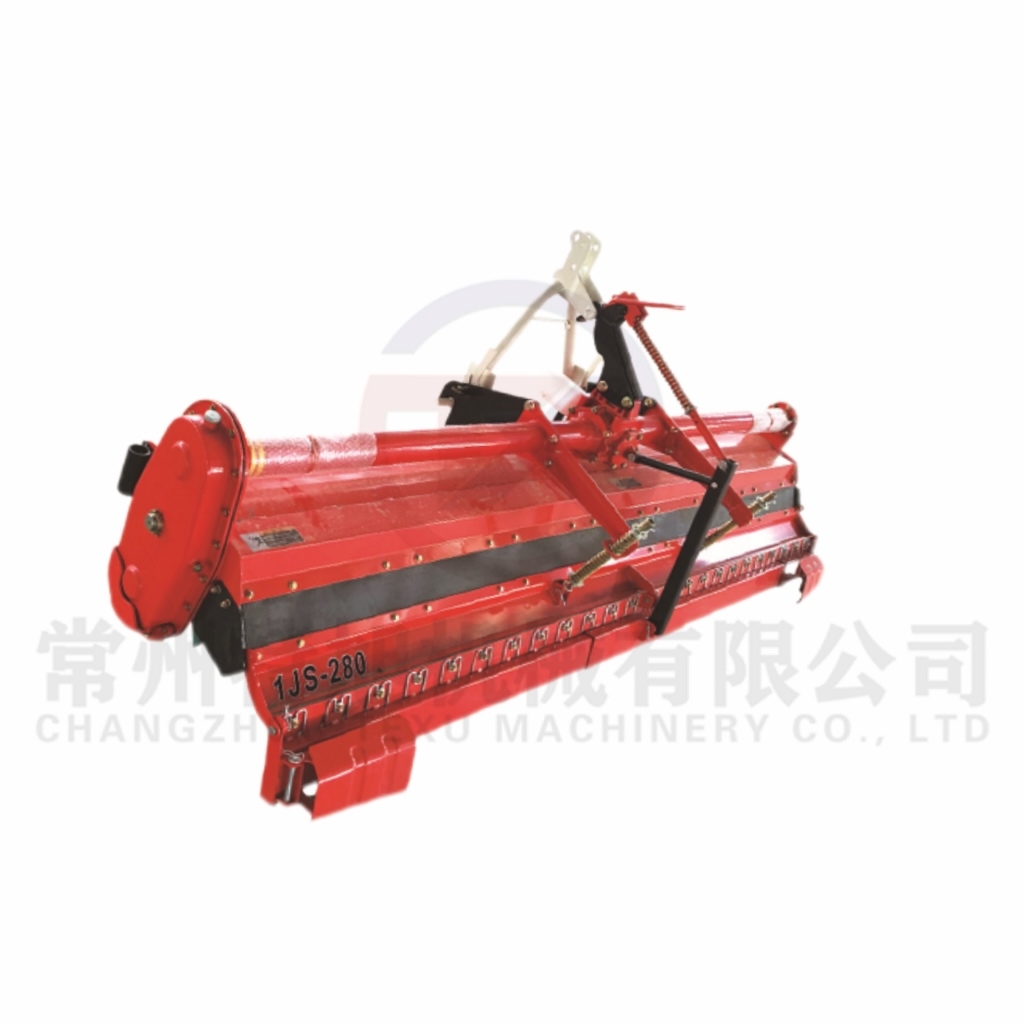

1JS-X Paddy field flat slurry mixer

The paddy field flat slurry mixer can complete processes such as rotary tillage, slurry mixing, leveling, and covering in one go. It is easy to operate, low in price, and has low technical requirements. It saves 35 yuan per mu compared to traditional paddy field rotary tillage and cultivation, while also saving time, fuel, and labor. It reduces the number of operational steps and aligns with the principles of agricultural machinery development: 'adapt to local conditions, be economically effective, ensure safety, and protect the environment.'
EMAIL INQUIRY

Technical specifications：

Model	1JS-250	1JS-260	1JS-280	1JS-300	1JS-320
External dimensions （mm)	102025951010	102027951010	102029951010	102031951010	102033951010
Matching tractor power range (km)	36.8-51.5	51.5-58.8	40.4-51.5	44.1-58.8	51.8-66.2
Matching tractor PTO shaft speed (r/min)	540/720
Connection with the matching tractor	Three-point suspension
Structural type	Round beam type, single hook
Working width mm	2500	2600	2800	3000	3200
Stirring slurry final transmission method	Single-sided side drive, gear drive
Stirring knife type	T35
Number of blades	62	68	74	78	84
Knife roller speed	308/411
Maximum swing radius	170
Buried cutting component type	Weed-breaking spring tine
